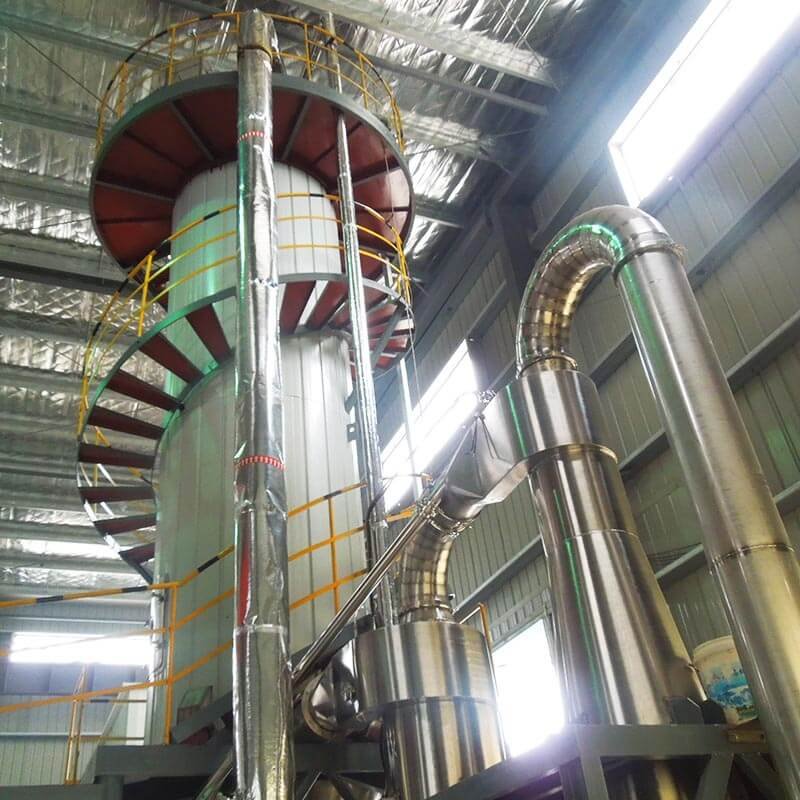

F-YPL Anti-Sticky Wall Spray Drying Small Granule Preparation Production Line

The successful development of the production line provides a possibility for the preparation of solid preparations by spray drying for the raw liquid of materials with strong hygroscopicity, prone to electrostatic wall sticking and thermal adhesion at the same time.

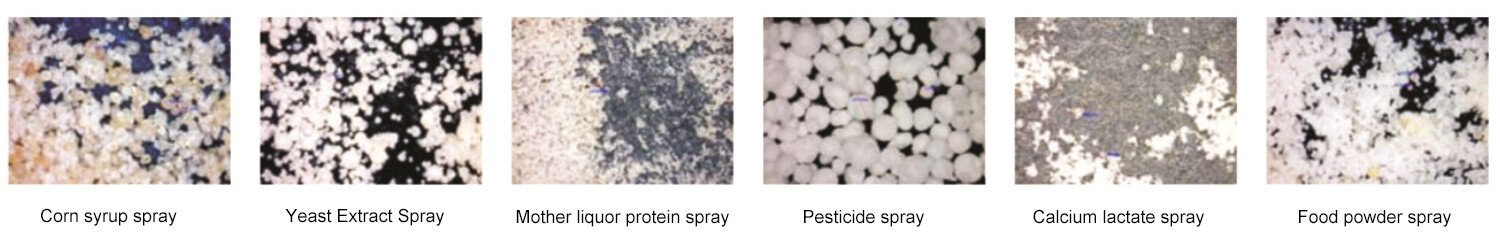

Application Material Refer:

Main features:

1. Reduce the material does not dry wet sticky wall, increase the tower height, tower diameter, air wall wind device.

2. Reduce the material electrostatic sticking wall, the production of material particles average 80-300 mesh, an average of 120 mesh, particle size is enough to avoid powder electrostatic sticking wall.

3. Reduce the material’s hot melting sticky wall, under the premise of ensuring the drying strength of the system, the temperature of the material can always be maintained at 50-80 degrees, to avoid hot melting sticky wall.

4. System sealing, less material loss, eliminating environmental pollution. The dryer operates under micro-negative pressure.

5. The key parts of the dryer are easy to replace, and the key control parameters can be adjusted to adjust the residence time of the materials to meet the needs of multi-species drying.
